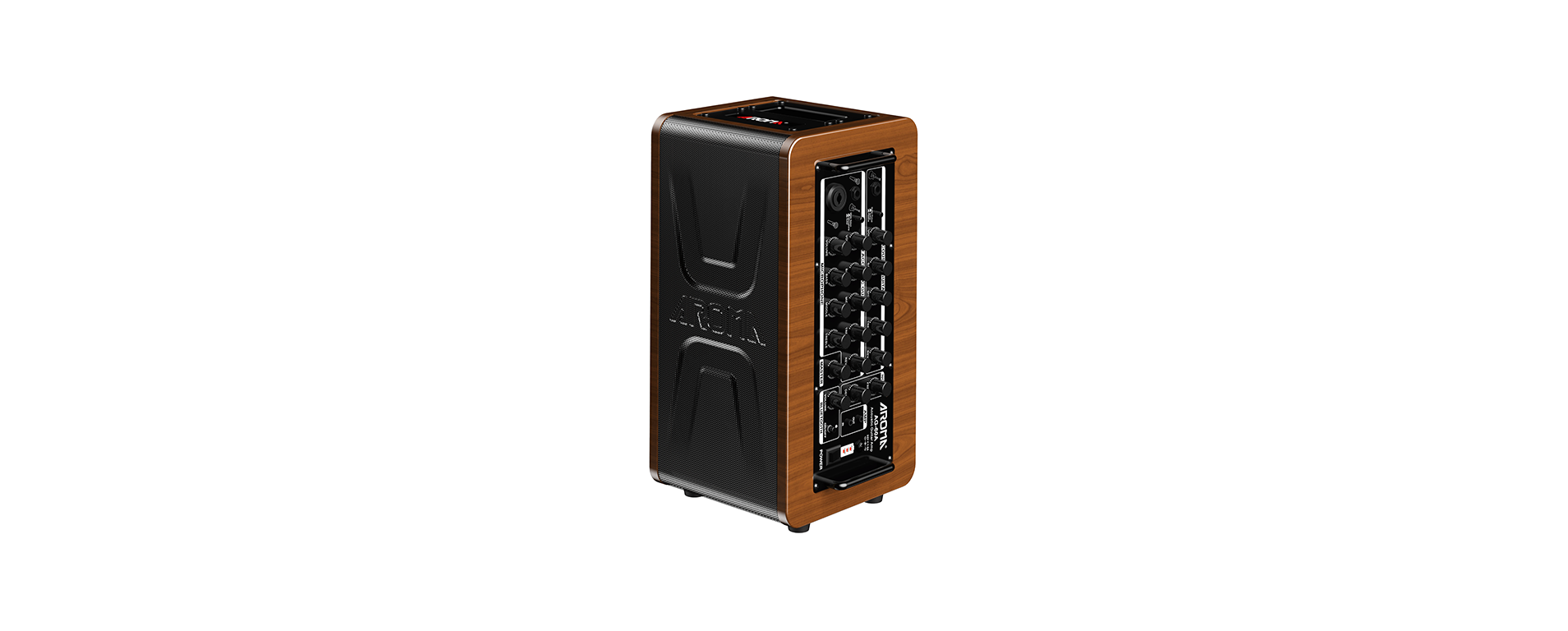

AG-60A
中文

3 EQ and reverb function

Both guitar channel and mic channel have 3 EQ and reverb function

Function Instruction

How to use

Large capacity lithium battery

The device is with lithium battery which allows it to be used outdoors

Double-side 5.5 inch full frequency speaker

60w Peak power for poweful sound.

Microphone channel has independent reverb

The guitar channel and microphone
channel signals are processed completely independently

Howling suppressing function

The function is to avoid howling even
though the instrument is very close to the device.

Bluetooth

Bluetooth to connect with mobile phone and other devices

Product Specifications

Output power 60w
Dual 5 " full frequency speakers, impedance 6 ohms
3 audio input channels
The volume, tone and reverb of each
channel can be adjusted independently.
The guitar channel can be selected in
either active or passive pickup mode
6.35mm and XLR input port optional.
Howling suppressing function and 4.1 Bluetooth Module
Built-in rechargeable battery 2200mAH/18.5-21V
Adaptor included is available for voltage 100-240V.
The power indicator shows that the battery life.
Wooden cabinet size :375*185*195mm
Weight:4kg
